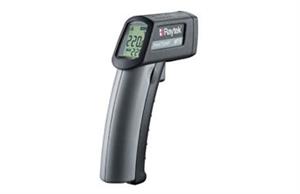

Infrared Thermometer_MINI TEMP
|
| Made By : RAYTEK - usa |
| "Product PDF" |
| Specifications : |
| Measurement range |
-30 to 500°C (-20 to 932°F) |
| Accuracy |
±1°C (2°F) from 10°C to 30°C (50°F to 86°F), ± 1.5% of reading or ± 1.5°C (3°F) whichever is greater over the balance of the range
(assumes standard and stable measurement conditions) |
| Repeatability |
±0.5% of reading or < ±1°C (±2°F)
whichever is greater |
| Emissivity* |
preset 0.95 |
| Response time |
<500 mSec |
| xDistance to spot size |
10:1 calculated @ 80% energy |
| Spectral range |
6.5–18 μm thermopile detector |
| Display resolution |
0.2°C (0.5°F) |
| Temperature display |
°C or °F selectable |
| Ambient operating range |
0 to 50°C (32 to 120°F) |
| Relative humidity |
10-90% RH noncondensing,
@ up to 30°C (86°F) |
Typical distance to
target (spot) |
Up to 2 m (6 ft) |
| Laser class II |
Laser Point Sighting |
| Weight/dimensions |
7 oz (200g)
152 x 101 x 38 mm (6 x 4 x 1.5 in) |
| Power |
9V Alkaline battery (included) |
| Battery life (alkaline) |
12 hours |
|
|
|
|
|
| |
