Ultrasonic Flaw Detectors - USM Go :
|
"Product PDF"
|
Made By - Ge , USA
|
|

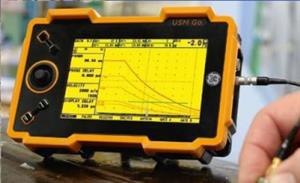

| he USM Go is the lightest and most portable ultrasonic flaw detector available from GE. The USM Go is designed for ease of prolonged operation in the harshest inspection environments in the oil and gas, aerospace, power generation and automotive industries. |
|
Spicifications :
|
|
LCD Display:
|
|
| Active Area |
W: 108 mm x H: 64.8 mm |
| Size |
5.0" |
| Pixel Resolution |
800 (W) x 480 (H) dot |
| Connectors: |
|
| Probe Connectors |
Two LEMO-00 |
| UT Output Connector |
SAP output, Alarm |
| USB Interface micro |
USB connector |
| SD-Card Connector |
Full size SD card slot to accommodate standard SD cards |
| Pulser |
All pulser measurements taken according to EN12668 specifications |
| Pulser Mode |
Simulated spike standard, Uni-polar square wave optional |
| Pulser Voltage (SQ Mode) |
120 V to 300 V with 10 V step in a tolerance of 10% |
| Pulser Width (SQ Mode) |
30 ns to 500 ns with 10 ns step in a tolerance of 10% |
| Pulser Amplitude (Spike Mode) |
Low: 120 V, High: 300 V |
| Damping |
50 or 1000 Ohms |
| PRF |
Automatically optimized between 15 Hz to 2000 Hz,3 automatic adjustment modes: AutoLow, Auto Med,AutoHigh - Optional manual control of PRF from 15 to 200Hz
|
| Receiver: |
|
| Range |
14016 mm at steel longitudinal wave |
| Digital Gain |
Dynamic range of 110 dB, with 0.2 dB step |
| Analog Bandwidth |
0,9 - 17,4 MHz |
| Filters |
Broad Band
Low Pass
5MHz (also 4)
10MHz
13MHz |
| Gate: |
|
| Independent Gates |
2 gates (A and B), Gate B supports triggering by gate A |
| Rectification |
Positive (POS) Full wave (FW)
Negative (NEG) RF
|
| Measurement |
Peak
JFlank
|
| Memory: |
|
| Capacity |
2 GB SD Card. Up to 16 GB memory cards can be used
|
| Report |
Report Jpeg and BMP reports
|
| Environmental: |
|
| Battery |
5.5 hours
On board charging
Off board charging with optional adaptor
Proportional battery gauge indicating remaining
operation time |
| Charger |
Universal AC (100-240 V, 50-60 Hz)
Meets CCC, CE, UL, CSA and PSE requirements |
| Size |
175 mm x 111 mm x 50 mm |
| Weight |
845 g (1.87 lb) with the battery |
| Languages |
Russian, Portuguese, Italian, Polish, Czech, English,German, French, Spanish, Chinese and Japanese |
| Protection as per Mil-Std-810F: |
|
Damp Heat &
Humidity (Storage) |
10 Cycles: 10 hrs at 60'C (140'F) down to 30'C (86'F),
10 hrs at 30'C (86'F) up to 60'C (140'F), transition
within 2 hrs, 507.4 |
Temperature Shock
(Storage) |
3 Cycles: 4 hrs at '20'C (-4'F) up to 60'C (140'F),
4 hrs at 60'C (140'F), transitions within 5 minutes,
503.4 Procedure II |
| Vibration |
514.5-5 Procedure I, Annex C, Figure 6,
General exposure: 1 hr each axis |
| Shock |
6 cycles each axis, 15 g, 11 ms half sine,
516.5 Procedure I |
| Loose Cargo (InShipping Container) |
514.5 Procedure II |
|
Transit Drop (Packaged for Shipment)
|
516.5 Procedure IV, 26 drops |
| Operating Temperature Range |
0'C to 55'C (32 to 131'F) |
| Storage Temperature Range |
-20'C to 60'C (-4 to 140 'F) with battery, 24 hrs |
| Dust Proof/Dripping Water Proof |
As per IEC 529 specification for IP67 classification |
| Compliance |
EMC/EMI EN55011 EN61000-6-2:2001 Ultrasound EN 12668 ASTM E1324
E317
ANSI/NCSL Z 540-1-1994
MIl STD 45662A
MIL STD 2154 |
| Options: |
|
| USM Go AWS Option |
AWS sizing tool according to AWS D1.1 Structural
welding code |
| USM Go Dac Option |
Dac sizing tool
16 points
Compliant with
EN 1712- EN 1713 ' EN 1714
ASME & ASME III
JIS Z3060 compliant
TCG: 110 dB dynamic
TCG: 120 dB/μs slope |
| USM Go DGS Option |
DGS sizing tool compliant with EN 1712 |
USM Go Embedded
Datalogger Option |
Datalogger Option
Custom linear and grid file creation |
USM Go Squarewave
Pulser Option |
Allows pulser parameters fine tuning
Voltage adjustment from 120 V to 300V per 10 V
steps
Pulse width adjustment from 30 ns to 500 ns per
10ns steps |
USM Go Manual PRF
and Phantom Option |
Allows Manual PRF optimization between 15 Hz and
2000 Hz per step of 5 Hz. Phantom PRF will help to
identify ghost echo due to multiple reflections in low materials |
